The vessels former military name > HMS Skredsvik


Artikel Nr:
GM-HMS Skredsvik


Produkt Information

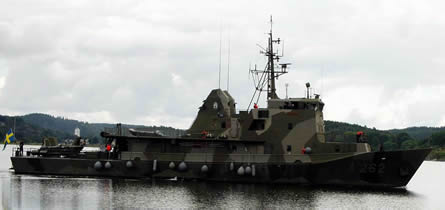

The ship is the former coast guard vessel TV 172. The ship was extended about 6 metres in 1992-93 to increase the speed and sea-going qualities and is now 49,9 meters long. The vessel has 14 cabins, 2 mess rooms,shower and sauna and is equipped with a smaller workshop.



Material: GRP SandwichDisplacement: 375 tonMaxs speed: 17 knotsLength (LOA): 49,9 mDraft: 4,4 mBeam: 8,5 m

Manufacturer: Karlskrona VarvetYear of manufacture: 1981

Main engines

2 x Diesel type: 16v Power: 1647 kW

Manufacturer: Hedemora

Operating time starboard engine: 12400 h / port engine: 12430 h

Propellant consumption : 210l/h at 10 knots main engines and auxiliary engines running


Propeller: 2 x Kamewa c.p 50l 230 MI-spec 3 blade

Gear: 2 x Reintjes WAL 1850 3:1 Truster: Ulstein typ 24T (hydralic from the main engine)

Steering engine: Tenfjord H-330-JR2/160-ESG + (H50-JR1/50L) hydraulic

Auxiliary system
Volvo Penta Diesel
Type: TAMD AK Driver, 120hp
Type: Stamford MC 4340, 200kVA/288A
380V 50Hz
Time on engine 1: 14500h engine 2: 14600h
Navigation system
Compass: JC Krohn Radar: Bridgemaster ARPA and slave Echo sounder: Skipper CS 115 MK
Log: Sperry SRD-301, Doppler speed log
Gyro: Sperry MK37
Autopilot: Litton navypilot


Deck euqipment

Crane: HIAB 1165 2500kg/2,2 m

Windlass: STEEN type 032,10

Capstan: STEEN type 540,10


Fuel: 90 m3 Oil: 1,2 m3 Fresh water: 8 m3 Sanitary tank: (black water) 3 m3

Waste oil: 1,6 m3 Grey water: 0,5 m3
